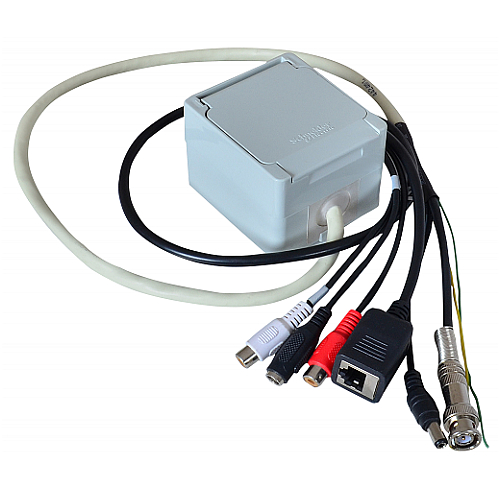

IP SERVER BOARD

Video SignalVideo output level: 1.0 Vpp +/-10% 75Ω, composite, Negative (BNC unbalanced)Video output frequency: -3dB +/-1dB at 3 MHz (30 fps, best recording)Video output burst level: 286mv (NTSC) +/- 10 %; 300mv(PAL) +/- 10 %Synchronization: InternalVideo CodecVideo compression: H.264 / Motion JPEGResolutions: 704 x 576 (PAL) 352 x 240 (PAL)Video streaming: Simultaneous H.264 (704x576 and 352 x240)Video Codec ? MJPEGMotion JPEG frame rate: 704 x 576 (PAL) 352 x 240 (PAL)Motion JPEG rate control: YesMotion JPEG quality level: 5Video Codec ? H.264H.264 Frame rate: 704 x 576 (PAL) 352 x 240 (PAL)H.264 frame rate control: YesCustomized H.264 bit rate: YesH.264 bit rate control: YesH.264 quality level: 5ImageAWB: Auto/Indoor/Outdoor/Push HoldFlickless: YesMirror: YesFlip: N/AHigh speed shutter: 1/1000 secondBack light compensation: SwitchableSaturation: AdjustableSharpness: AdjustableContrast: AdjustableBrightness: AdjustablePrivacy Area: Programmable 3 independent zonesMotion Detection: Programmable 96 independent zonesMotion Detection Sensitivity: 5 levelsCustomized motion detection sensitivity: YesOSD: IP Address/Date/Time/ICONTimestamp: Title/Date/TimeSoftware PlatformOperation System: Proprietary OSSystem Requirement: Microsoft Windows 2000/ Microsoft Windows XP/Microsoft Windows VistaRemote Access Software: Microsoft Internet Explorer 6.0 or aboveNetwork API: SDK/CGI/DLL
